Новости (Усилители, наушники, цапы, кабели и прочее...)

[NIK 9]

Почта России формирующая облик России вне страны — кража посылок



http://mrmurtazin.com/2012/04/10/pochta-rossii-formiruyushhaya-oblik-rossii-vne-strany-krazha-posylok/

[NIK 9]

Antelope Audio Rubicon - World’s First Atomic AD-DA Preamp





Rubicon is a 384 kHz converter, phono stage preamp and headphone amplifier with an integrated atomic clock.



Antelope Audio will introduce Rubicon, a groundbreaking 384 kHz digital audio preamplifier which integrates the world renowned 10M Rubidium atomic clock. Rubicon caters for the ever-increasing interest in high resolution audio, addressing the specific needs of high end consumer electronics enthusiasts for accurate audio representaion and detailed soundstage of both analog and digital recordings. The new device will be presented to the public during the Munich High End Show, May 3rd – 6th.



Rubicon is the first DAC to integrate a Rubidium atomic clock, which is 100,000 times more stable than a traditional crystal oscillator. Coupled with Antelope’s 64-bit Accoustically Focused Clocking technology, the Rubidium achieves a breakthrough in jitter managment, improving the sound quality in an unprecedented way. The same technology is implemented in the company’s flagship master clocks.



Housed in a sturdy, machined-aluminum enclosure with a vintage Art Deco design, Rubicon incorporates a discrete phono preamp; ultra linear, dual stage headphone drivers and Antelope’s renowned gold-plated relay volume control.



The transformer-based, ultra-low noise, discrete JFET phono preamp is a complement that will be highly appreciated by many vinyl lovers. In addition to the 384 kHz DAC, Rubicon also includes ultra-high sample rate A/D conversion. These functionalities together with the high resolution USB recording capability provide the users with the sublime experience of digitizing their favorite tracks, still keeping the depth and the warmth of the original analog recordings.



In addition to the 384 kHz USB streaming, Rubicon offers extended flexibility and smooth user experience provided by the implemented DLNA capability. The DLNA streaming gives users the opportunity to wirelessly push audio files from their smart phone, PC or NAS (Network-attached storage) server and play the content through the high-sample rate DAC.



Rubicon features



10M Rubidium Atomic Clock, providing 100,000 times more accurate reference;

64-bit Acoustically Focused Clocking jitter management technology;

Ultra low noise phono inputs with custom audio transformers, discrete JFET preamp design;

384kHz A/D & D/A converters;

Gold-plated stepped relay volume attenuator matched to 0.05dB for all volume levels;

Ultra-linear, dual stage headphone amps;

De-jittered audio S/PDIF output;

Custom USB 2.0 chip streaming up to 480 Mbits/384kHz with recording option;

DLNA streaming capabilities through an Ethernet interface





Analog Inputs



1x PHONO Input on RCA

3x Inputs on RCA

1x HiZ Input on RCA

1x Combo Balanced Input on XLR/? TRS



Analog Outputs

1x Balanced Output on XLR

1x Unbalanced Output on RCA



Digital Inputs



2x S/PDIF

2x TOSLINK

1x AES/EBU

Word Clock Input

Ethernet port



Digital Outputs

2x S/PDIF De-jittered outputs

[NIK 9]

Гид покупателя. Как купить электронику или одежду за границей и получить почтой



Часть 1

http://mobile-review.com/articles/2012/guide-online.shtml



Часть 2

http://www.mobile-review.com/articles/2012/guide-online2.shtml



Часть 3

http://www.mobile-review.com/articles/2012/guide-online3.shtml

[NIK 9]

ExaDevices: The exa U2I [$430] is an async USB/I?S interface with DSD64/128 support.



More 32/384 -The exa U2I [$430] is an async USB/I?S interface with DSD64/128 support. "Asynchronous operation is achieved with a fast FPGA control core, 256kB fifo buffer and proprietary ASIO driver. Galvanic isolation of the FPGA's I?S output and USB ground is via giant magnetoresistive digital isolators. Barrier capacitance between board circuits and I?S outputs is 17pF. The I?S output is powered by the external DAC's power supply and fully independent from USB power supplied to the board.



"Two precision quartz oscillators allow very accurate clocking with minimum jitter for the 44.1kHz and 48kHz sample rate families. Two voltage regulators with low-pass filters provide low-noise power to the FPGA core and quartz oscillators. This further minimizes jitter and noise. A custom designed ASIO driver provides automatic sampling rate switching and bit-perfect data transfer. The USB socket is a mini type."





exaU2I USB to I2S Interface Overview

Multichannel asynchronous USB to I2S audio interface delivering 384 kHz 32bit low-jitter bit-perfect performance



exaU2I USB to I2S Interface is the missing link between a PC and the I2S input of your DAC. exaDevices USB to I2S Interface is designed for use in high-end DIY audio projects aiming to achieve sonic performance that rivals traditional audiophile grade gear.



exaU2I is the first affordable device on the market that makes it possible to stream multichannel 384 kHz and 352.8 kHz DXD audio in full 32 bit resolution from a PC to a DAC with professional mastering quality.



Asynchronous operation is achieved by using fast FPGA control core, 256 kB FIFO memory buffer and proprietary ASIO driver.



Galvanic isolation of the I2S output from the FPGA core and the USB ground virtually eliminates jitter and common noise originated by the PC. Isolation is achieved by using Giant Magnetoresistive (GMR) Digital Isolators. The barrier capacitance between the board circuits and the I2S outputs is 17 pF.



The I2S output is powered by the external DAC power supply and it is completely independent from the USB power supplied to the board.



Two precision quartz oscillators allow very accurate clocking with minimum jitter for the 44.1 kHz and 48 kHz sample rate families.



Two voltage regulators with low-pass filters provide low-noise power to the FPGA core and the two precision quartz oscillators. This further minimizes jitter and noise.



Custom designed ASIO driver provides automatic sampling rate switching and bit-perfect data transfer. The exaU2I USB ASIO driver operates in asynchronous mode and it is completely independent from the Windows sound system



WDM / WASAPI support is available by using a third-party native Windows driver - Virtual Audio Cable.



http://www.exadevices.com/

[Asheraddo 3 727]



Antelope Audio Rubicon - World’s First Atomic AD-DA Preamp





Кажется, я окончательно превращаюсь в аудиоманьяка, потому что почитав про этот девайс, я начал думать, на что я бы мог пойти, чтобы такой стоял у меня дома Стоить будет, судя по цене на атомные часы, как крыло истребителя



[spark 0]

"Стоить будет, судя по цене на атомные часы, как крыло истребителя"

25000 евро

[NIK 9]

Koss: от дивана до легенды





t=4048024

[NIK 9]

WEISS MAN301 VIP









Features:

External music storage on a NAS (Network Attached Storage) device or USB device

multiple NAS units can be added to the library for unlimited storage

remote control via an Apple iPad, no keyboard, mouse, monitor required

digital inputs for external audio sources: AES/EBU or S/PDIF on XLR, RCA, TOSLINK

digital outputs to external D/A Converters: AES/EBU on XLR and RCA, FireWire, USB

DAC Version: Analog outputs on XLR and RCA - technical better than our renowned DAC202 unit

wordclock input and output on BNC for synchronization

Ethernet for connecting to NAS, local network

WiFi antenna for connecting to iPad, local network

typical setups: 1) MAN301 connected directly to the NAS and iPad, in addition (optionally) to the in-house WiFi for Internet access. 2) MAN301, NAS, iPad connected to a WiFi Router.

multiple MAN301 devices can be controlled from within a single iPad

multiple users per MAN301 device are supported, each with his/her own music library, playlists, searches etc.

all common audio file formats (uncompressed, lossless compressed, lossy compressed) are supported for playback and ripping

music library displayed according to album names, artist names, genres, recently played, recently added

powerful search facility, allows to store searches which result in dynamic playlists

playlists are easily added, edited and can be set safe

volume control in 4 coarse analog steps and with a high resolution, dithered digital fader

powerful cover art search algorithm which allows the user to select the most appropriate cover art out of an intelligent pre-selection

CD metadata fetching from various databases

comprehensive user interface on iPad, easily to be handled even by computer novices

software upgradeable via Internet

internet radio streaming

future software upgrades will include various DSP facilities



http://www.asiaweiss.com/main/2012/01/25/man301/

http://www.my-hiend.com/vbb/showthread.php?5848-WEISS-MAN301-VIP

[NIK 9]

KingRex USB cable





The company's new 2m 'power-separated' Unanimous uArt USB cable runs the power and signal lines on physically separated double-shielded legs like Acoustic Revive and applies cryogenic treatment to their silver-plated oxygen-free copper conductors sourced from WireWorld. The plugs sport full aluminum shells and 24K gold-plated copper-alloy contacts. The cable geometry supports 480MBps in full compliance with the High-Speed USB2.0 standard. Pricing is $459 for a 2-meter length. In single form (power and signal lines combined) a 1m cable is $239, a 2m cable $269. A unique application for the double cable is to plug its power lead not into a Mac or PC but the KingRex U Power battery supply. For any DAC's USB transceiver that derives power over the buss this now completely eliminates the computer and delivers pure uncontaminated DC instead.



http://www.kingrex.com/home.aspx

[NIK 9]

Audio Electronics





The Nighthawk headphone amp [$1.195] features top-quality parts mounted on a thick fiberglass board. A power transformer rated at thrice what's required feeds a fully regulated discrete power supply. Operating in class A throughout, the Nighthawk’s front end is a monolithic high-speed FET which meets a fully complementary high-speed buffered output stage for extremely high linearity and low distortion. No global feedback is used and the amp is designed to drive headphones from 20-600 ohms. A five second muting circuit prevents annoying pops and clicks when turning on the Nighthawk.



http://www.avguide.com/article/audio-el ... -amplifier

http://www.caryaudio.com/

[NIK 9]

Burson The Soloist





New Burson - The Soloist [€940] is the Aussies' new IC-free pure class A reference 3-input pre/headfi amp with up to 4wpc into 16 ohms and 25 watts of power dissipation. It boast a new symmetrical current feedback FET input stage with just 21 parts, "almost 60% less than any IC opamp output stage and 30% less than our own HA-160". A new variable output stage can select from 0.18wpc to 4wpc of headphone power whilst in preamp mode gain factor will morph from 7dB to 18dB in three steps. A new stepped attenuator sports a redesigned gain taper to provide "perfect control" in conjunction with the VSO. The power transformer is rated at 30 watts. S/N ratio is >96dB, input impedance 36.5K and frequency repsonse ±1dB 0-50kHz. Dimensions are 180 x 250 x 80mm, weight is 4.5kg. Release date is July 1, 2012.



http://www.bursonaudio.com/Burson_Soloist.html

[NIK 9]

Eddie Current Super 7





Eddie Current - The new Eddie Current Electra is an all-tube electrostatic headphone amplifier " esigned with the objective of producing a lively and dynamic soundstage. It has balanced inputs/outputs, accepts single ended inputs and offers adjustable bias. The Electra comes with 4 x 6SN7 and 4 x 6L6GC."



The new Super 7 "is an entry-level headphone amplifier for both balanced and single-ended headphones with a smaller footprint (15.5" x 9.5" x 5.5") than most amps of comparable power. Utilizing 6SN7 tubes, the Super 7 has been designed to provide a superb soundstage. The Super 7 delivers 1 watt into 32 ohms and can be ordered for $1650 plus shipping. A tube package costs an additional $175 and a 120V AC line cord $5."



http://www.eddiecurrent.com/Super_7.html

[NIK 9]

NuForce DAC-100 | MSRP $1095





NuForce DAC-100 is a class-leading digital-to-analog converter (supporting USB and S/PDIF) and headphone amplifier designed for consumers seeking a level of performance typically found in the finest audiophile equipment.

The DAC-100 accepts up to four digital input sources and features a precision digital volume control, a high-power headphone amplifier section with extremely low distortion, a high-resolution analog RCA output stage, and a convenient wireless remote.

The DAC-100 incorporates several NuForce innovations:

Low Jitter

The DAC-100’s digital input stage operates in an asynchronous mode independent of any timing errors associated with the incoming digital audio stream. The input stage synchronizes the data to an internally referenced timing signal generated by an exceptionally stable circuit. The re-clocking circuit’s accuracy is such that any negative timing errors (jitter) are reduced to near theoretical limits. Read about Jitter FAQ

Powerful Headphone Amp

The DAC-100's headphone amp delivers enough power to drive most headphones with absolute authority. It provides a full 500-milliwatts Single-Ended Class "A" power, held by many audiophiles to be a headphone amp’s purest form of circuit topology.

Precision Volume Control

A digital 32-bit volume control offers precise channel tracking. Unlike more common digital volume controls operating at 24 or 16-bits, the 32-bit dynamic range of the DAC-100's volume control avoids any loss of low-level resolution.

Transparent Preamp

The analog preamp stage is a minimalist design offering a signal path that approaches a straight-wire-with-gain level of performance. Combined with top quality parts and a full 2.0Vrms signal level at the RCA outputs, the preamp section of the DAC-100 ensures that only the purest of analog music signals will ever be presented to your preamplifier.

No Up-sampling

A 24-bit, 192kHz DAC stage accurately converts digital audio data back to an analog signal at its native sampling rate. No up-sampling or other questionable data manipulation is ever employed.

Note: For Async USB Audio, please refer to the Async USB Audio FAQ and Setup Guide.

The following plots showed exceptionl performance of DAC-100. Please refer to larger images of the measurement plot in the image gallery above.



Specifications:

Digital:

(4) Digital inputs: USB, Toslink, RCA x 2, transformer or optical isolated, AC coupled.

Maximum bit depth: 24 bit

Maximum sample rate: 192kHz

USB: Asynchronous up to 192kHz/24-bit. Please refer to the Async USB Audio FAQ and Setup Guide.

Sample rate indicator

Volume control: 32-bit digital attenuator

Analog:

THD+N: 0.005, 0dB, 1kHz

SNR: 96dB, 1kHz, A-weighted

Frequency Response: 20-25kHz +/- 0.25dB

Outputs: RCA, 6.3mm headphone output

Output voltage 0dB, 1kHz: RCA 2.0Vrms

Output Impedance: RCA, 100-Ohm

Headphone Specifications:

Recommended Headphone Impedance: 120-600 Ohm

Output: 10.4 Vpp, 3.7 Vrms @ 300-600 Ohm

Single-ended, constant current 80mA

Remote Control Functions:

Volume, Input Select, Mute, Stand-by

AC voltage:

100V/110V/220V/230V

Power consumption:

12-Watts.

Dimensions:

Height: 2 inches ( 5.1cm )

Width: 8.5 inces ( 21.6 cm )

Depth: 9 inches ( 22.9 cm )

Weight: 2.64 pounds ( 1.2 kg )

Available in black and silver color.



Included Accessories:

USB cable (1 meter)



http://www.nuforce.com/hp/products/dac100/index.php

[deeone 81]

Audioquest DragonFly USB Digital-Audio Converter





Specification:

Capabilities:

• Drives headphones directly

• Variable output drives powered speakers or a power amplifier

• Fixed output feeds preamp or AV receiver

Features:

• 64-position analog volume control

• Accepts music files up to 24-bit/96kHz resolution

• Asynchronous Class 1 USB data transfer using the Streamlength protocol

• Direct-coupled circuitry from the ESS Sabre DAC chip through the analog volume control and output analog driver section

• Dual Master Clocks are used to minimize the amount of jitter present in the DAC circuitry



Website Audioquest

Price: € 249,00

[deeone 81]

Nighthawk Headphone Amplifier from Audio Electronics by Cary Audio



The Nighthawk Headphone Amplifier is an all solid-state design, based on a new monolithic JFET device with exceptional sonic qualities. The combination of a well-designed front end and this Class A discrete complementary output stage yields tremendous speed and bandwidth for very accurate musical reproduction.



The power supply is again designed with very low noise and over-spec’d parts to be optimized for superb audio performance. All internal components of the Nighthawk Headphone Amplifier are thus optimized to maximize sonic potential and exhibit Audio Electronics sonic signature, which does not sound like typical solid-state equipment.



Specification:

Input Impedance 50K ohms

Gain 20dB

Frequency Response 5Hz to 35 kHz (-1dB)

Signal to Noise Ratio >90dB at 0dB gain

THD <0.01%

Channel Separation >70dB/10kHz

Output Power 400mW/300 Ohms, 600mW/30 Ohms

Output Impedance 5 ohms

Full Regulated Power Supply Discreet regulators for audio circuits

Connectors (audio) 1 x phone jack

4 x gold plated RCA connectors 1 set for input and other used as pass thru

Dimensions 14.5" L X 8.5" W X 4" H

Weight 10 lbs.



http://www.caryaudio.com/AEbyCary/produ ... thawk.html

[NIK 9]

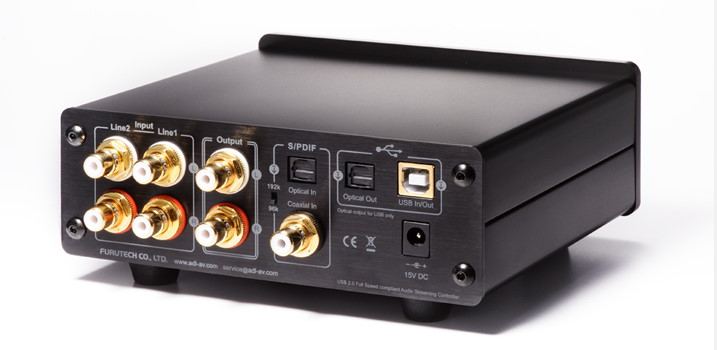

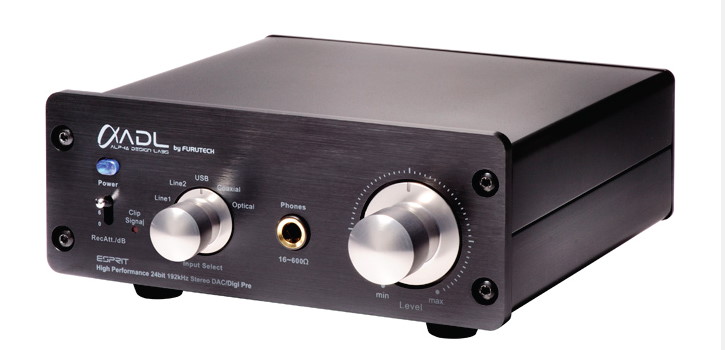

ADL ESPRIT DAC and ADC Digital Preamplifier / Recording Interface





http://www.my-hiend.com/vbb/showthread. ... ADL-ESPRIT

[clubnewmen 3 312 2 Тракты]

ADL ESPRIT DAC and ADC Digital Preamplifier это устройство от известного японcкого производителя Furutech.

[МедВаз 384]

Audio Valve Eartube MarkII

http://www.audiovalve.info/nav/eartue_en.html



"Стрелочник", вещь .

Хоть и не влезет у меня по размерам (вопрос цены опустим), но уже готов "бить копытом".

Если бы сделали "усечённый" вариант, т.е. без выходов на АС, и этим снизили бы цену, - я бы начал думать уже по серьёзному.

Искать информацию и т.д. и т.п.



Larin - .



[clubnewmen 3 312 2 Тракты]

Audio Valve Eartube MarkII

Отличный усилитель для ТДС-7 !

[kyanatolij 0]

(Fostex HP-A8C 32 bit DAC Headphone Amplifier)









Specification:High fidelity 32bit D/A converter (Asahi Kasei's AK4399) and all discrete analog circuitry headphone amplifier.



Complies with USB Audio Class 2.0 up to 32bit / 192kHz (24bit on Windows)



Asynchronous mode by highly precise TCXO (Temperature Compensated Cristal Oscillator) clock.



Highly precise level adjustment by an electronic volume designed for audio equipment.



Large capacity toroidal power transformer.



Built-in SD (SDHC) card drive for epoch-making DSD file (DSF format) reproduction in addition to the firmware update.



Selectable between the internal clock and the external clock (except for USB and SD card)



Built-in up-sampling function of x 2 and x4



Digital Filter selection between the conventional "sharp roll-off" and the "minimum delay" developed by Asahi Kasei to eliminate pre-echo.



Direct Out mode bypassing the volume control circuit.Variable headphone amplifier's gain from 0dB to -12dB by 0.5dB step for perfect match with any type of headphones.



Various inputs including USB, AES/EBU, Coaxial, Optical (x2) and analog RCA.A dedicated Remote Controller is supplied.



Beautiful white Organic LED for the display



http://www.fostexinternational.com/docs ... XLFH.shtml

[deeone 81]

kyanatolij

Разве он еще не упоминался? Тут уже и владелец есть

[Asheraddo 3 727]

kyanatolij

Разве он еще не упоминался? Тут уже и владелец есть



Это вроде другой девайс, "старый" просто усь, а тут комбайн

[deeone 81]

Он самый, HP-A8.

[Serg53 6 984]

К Eddie Current Super 7- между прочим при отличная оказалась современная российская лампа Tung-Sol 6SN7GTB. Есть у меня и старый американский вариант- но российская после прогрева оказалась даже интересней....такие НЧ колбасит!

[NIK 9]

CIAudio Transient MKII Asynchronous USB Converter





$699



Features:



Audio Circuit

The heart of the system is our XMOS based circuit utilizing extremely low-jitter clocks. Multiple digital outputs are available via isolated 75 ohm BNC (with included 75 ohm RCA adapter) and two individually buffered I2S outputs.



High Quality DAC

In addition to the digital outputs, Transient also provides Digital to Analog conversion. The conversion is done by a Wolfson circuit with a built-in high resolution volume control and 2V RMS output. A microprocessor circuit allows configuration for fixed (line level) output, or variable volume control, and also indicates the sampling frequency of the incoming signal.



Chassis and Build

Highest quality parts are used throughout: Nichicon Muse & 2% tolerance polypropylene power supply capacitors, Takman resistors and WIMA polypropylene capacitors for signal circuits, and Canare BNC connector. The shielded anti-resonant chassis is 1/8 thick T6061 aluminum with 3/16” thick front panel, and all hardware is non-magnetic stainless steel.



Runs off the grid

The Transient is powered by the USB cable so you can plug into your computer audio and take it on the go. Our VDC-5 MKII Upgrade Power Supply can be connected to the DC Input port for improved performance.



Specifications:

Digital Outputs:• S/PDIF via 75 ohm BNC Connector (Galvanic Isolated)

• I2S via Mini DIN Connector (Audio Alchemy/Perpetual Tech/Camelot)

• Differential I2S via HDMI Connector (PS Audio/Wyred4Sound)Sample Rates Supported44.1k, 48k, 88.2k, 96k, 176.4k, 192k up to 24bitsMaster Clock Jitter:< 1.0psecAnalog Output Level2V RMS Maximum (Single-ended RCA)Frequency Response 20hz to 96kHzTHD + Noise:-89db @ -1dBFSDimensions4.45"W x 2.9"H (including feet) x 5.25" DShipping Weight5 lbsWarranty5 Year Parts & Labor



http://www.ciaudio.com/products/TransientMKII
